| CPU |
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
| * Refer to www.asus.com for CPU support list. |
|
| Chipset |
AMD X670 |
| Memory |
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* |
| |
Dual Channel Memory Architecture |
| |
Supports AMD EXTended Profiles for Overclocking (EXPO™) |
| |
OptiMem II |
| |
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
| |
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| Graphics |
1 x DisplayPort* |
| |
1 x HDMI® port** |
| |
* Supports max. 8K@60Hz as specified in DisplayPort 1.4. |
| |
**Supports max. 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots |
AMD Ryzen™ 7000 Series Desktop Processors* |
| |
1 x PCIe 5.0 x16 slots (supports x16 mode) |
| |
AMD X670 Chipset** |
| |
1 x PCIe 4.0 x16 slot (supports x4 mode) |
| |
1 x PCIe 3.0 x1 slot |
| |
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). |
| Storage |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| |
AMD Ryzen™ 7000 Series Desktop Processors |
| |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| |
AMD X670 Chipset |
| |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| |
4 x SATA 6Gb/s ports |
| |
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. |
| Ethernet |
1 x Intel® 2.5Gb Ethernet |
| |
ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 6E |
| |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| |
Supports 2.4/5/6GHz frequency band |
| |
Bluetooth v5.2 |
| USB |
Rear USB (Total 12 ports) |
| |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| |
9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®) |
| |
2 x USB 2.0 ports |
| |
Front USB (Total 7 ports) |
| |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) |
| |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| |
Impedance sense for front and rear headphone outputs |
| |
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| |
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input |
| |
Supports up to 32-Bit/384 kHz playback |
| |
Audio Features |
| |
Audio Shielding |
| |
Savitech SV3H712 AMP |
| |
Gold-plated audio jacks |
| |
Rear optical S/PDIF out port |
| |
Premium audio capacitors |
| |
Audio cover |

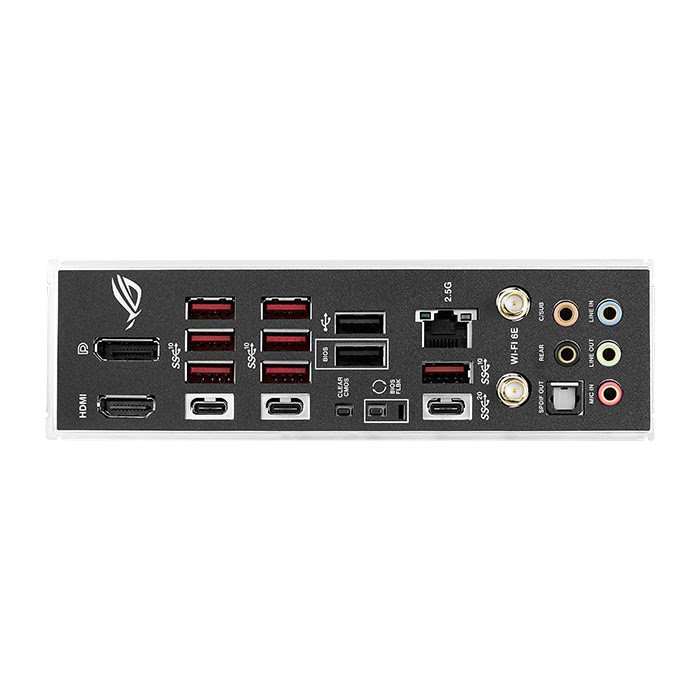

| Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x Type-C®) |
| |
9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 x USB Type-C®) |
| |
2 x USB 2.0 ports |
| |
1 x DisplayPort |
| |
1 x HDMI® port |
| |
1 x Wi-Fi Module |
| |
1 x Intel® I225-V 2.5Gb Ethernet port |
| |
5 x Gold-plated audio jacks |
| |
1 x Optical S/PDIF out port |
| |
1 x BIOS FlashBack™ button |
| |
1 x Clear CMOS button |
| Internal I/O Connectors Fan and Cooling related |
1 x 4-pin CPU Fan header |
| |
1 x 4-pin CPU OPT Fan header |
| |
1 x 4-pin AIO Pump header |
| |
5 x 4-pin Chassis Fan headers |
| |
Power related |
| |
1 x 24-pin Main Power connector |
| |
2 x 8-pin +12V Power connector |
| |
Storage related |
| |
4 x M.2 slots (Key M) |
| |
4 x SATA 6Gb/s ports |
| USB |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) |
| |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| |
Miscellaneous |
| |
3 x Addressable Gen 2 headers |
| |
1 x Aura RGB header |
| |
1 x CPU Over Voltage jumper |
| |
1 x Front Panel Audio header (AAFP) |
| |
1 x 20-3 pin System Panel header with Chassis intrude function |
| |
1 x Thermal Sensor header |
| |
1 x Thunderbolt™ header |
| Special Features |
Extreme Engine Digi+ |
| |
5K Black Metallic Capacitors |
| |
ASUS Q-Design |
| |
M.2 Q-Latch |
| |
PCIe Slot Q-Release |
| |
Q-DIMM |
| |
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| |
Q-Slot |
| |
ASUS Thermal Solution |
| |
M.2 heatsinks |
| |
M.2 heatsink backplate |
| |
VRM heatsink design |
| |
ASUS EZ DIY |
| |
BIOS FlashBack™ button |
| |
BIOS FlashBack™ LED |
| |
Clear CMOS button |
| |
ProCool II |
| |
Pre-mounted I/O shield |
| |
SafeSlot |
| |
SafeDIMM |
| |
Aura Sync |
| |
Aura RGB header |
| |
Addressable Gen 2 headers |
| Software Features |
ROG Exclusive Software |
| |
GameFirst VI |
| |
ROG CPU-Z |
| |
Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion |
| |
Sonic Radar III |
| |
DTS® Sound Unbound |
| |
Anti-virus software |
| |
ASUS Exclusive Software |
| |
Armoury Crate |
| |
AIDA64 Extreme (60 days free trial) |
| |
Aura Creator |
| |
Aura Sync |
| |
Fan Xpert 4 (with AI Cooling II) |
| |
Power Saving |
| |
Two-Way AI Noise Cancellation |
| |
AI Suite 3 |
| |
TPU |
| |
DIGI+ VRM |
| |
Turbo app |
| |
PC Cleaner |
| |
MyAsus |
| |
WinRAR |
| |
UEFI BIOS |
| |
ASUS EZ DIY |
| |
ASUS CrashFree BIOS 3 |
| |
ASUS EZ Flash 3 |
| |
ASUS UEFI BIOS EZ Mode |
| |
Dynamic OC Switcher |
| |
FlexKey |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |

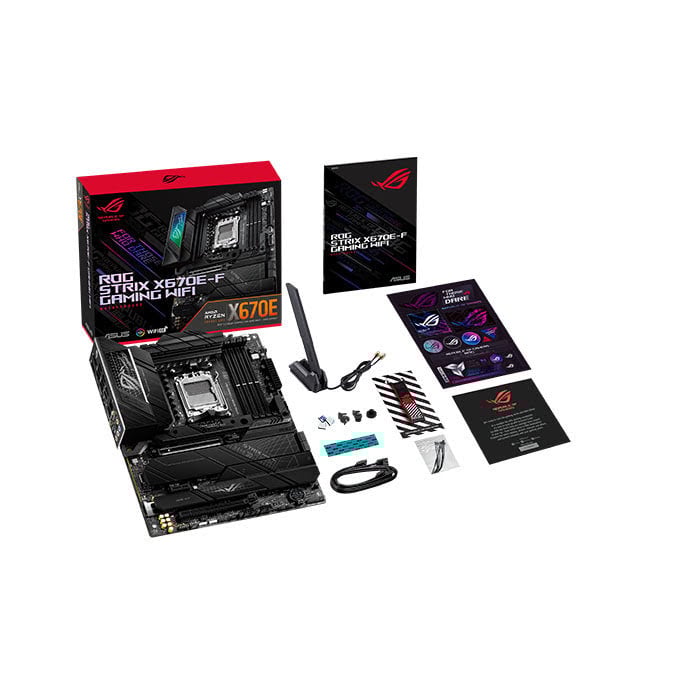

| Accessories |
Cables |
| |
2 x SATA 6Gb/s cables |
| |
Additional Cooling Kit |
| |
1 x Thermal pad for M.2 |
| |
Miscellaneous |
| |
1 x ASUS Wi-Fi moving antennas |
| |
1 x Cable ties pack |
| |
1 x M.2 Q-Latch package for M.2 backplate |
| |
1 x M.2 Q-Latch package |
| |
1 x ROG key chain |
| |
1 x ROG Strix stickers |
| |
1 x ROG Strix thank you card |
| |
2 x Rubber Packages for M.2 |
| |
1 x Rubber Package for M.2 backplate |
| Documentation |
1 x User guide |
| Operating System |
Windows® 11 64-bit |
| Form Factor |
ATX Form Factor |
| |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
