CHIPSET |
AMD X670 |
CPU SUPPORT |
Supports AMD Ryzen™ 7000 Series Desktop Processors |
|
Socket AM5 |
MEMORY |
4x DDR5, Maximum Memory Capacity 128GB |
|
Memory Support DDR5 6666+(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz |
|
Max. overclocking frequency: |
|
• 1DPC 1R Max speed up to 6666+ MHz |
|
• 1DPC 2R Max speed up to 6000+ MHz |
|
• 2DPC 1R Max speed up to 6400+ MHz |
|
• 2DPC 2R Max speed up to 4000+ MHz |
|
Supports Dual-Channel mode |
|
Supports non-ECC, un-buffered memory |
|
Supports AMD EXPO |
ONBOARD GRAPHICS |
1x Type-C DisplayPort |
|
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz* |
|
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
EXPANSION SLOT |
3x PCI-E x16 slot |
|
Supports x16/x0/x4, x8/x8/x4 |
|
PCI_E1 PCIe 5.0 supports up to x16 (From CPU) |
|
PCI_E2 PCIe 5.0 supports up to x8 (From CPU) |
|
PCI_E3 PCIe 5.0 supports up to x4 (From CPU) |
MULTI-GPU |
Supports AMD MULTI-GPU |
STORAGE |
4x M.2 slot |
|
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
|
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
|
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
|
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices |
|
6x SATA 6G port |
RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* |
|
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
|
* SATA_A1~A2 do not support RAID function. |

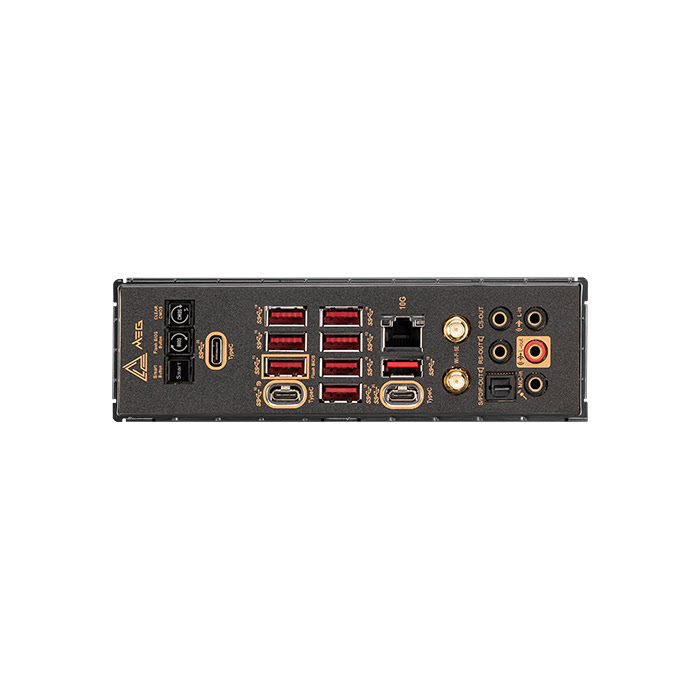

USB |
4x USB 2.0 (Front) |
|
4x USB 3.2 Gen1 Type A (Front) |
|
8x USB 3.2 Gen2 Type A (Rear) |
|
1x USB 3.2 Gen2 Type C (Rear) |
|
1x USB 3.2 Gen2 Type C (Front) |
|
2x USB 3.2 Gen2x2 Type C (Rear) |
|
1x USB 3.2 Gen2x2 Type C (Front) |
LAN |
Marvell® AQC113-B1-C 10Gbps LAN |
WIRELESS / BLUETOOTH |
AMD Wi-Fi 6E |
|
The Wireless module is pre-installed in the M.2 (Key-E) slot |
|
Supports MU-MIMO TX/RX |
|
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands |
|
Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
Supports Bluetooth® 5.2** |
|
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. |
|
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
AUDIO |
Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA |
|
7.1-Channel High Definition Audio |
|
Supports S/PDIF output |
|
Supports up to 32-Bit/384 kHz playback on front panel |
INTERNAL I/O |
1x Power Connector(ATX_PWR) |
|
2x Power Connector(CPU_PWR) |
|
1x Front Type-C Quick Charge Connector(PD_PWR1) |
|
1x CPU Fan |
|
2x Pump Fan |
|
5x System Fan |
|
2x Front Panel (JFP) |
|
1x Chassis Intrusion (JCI) |
|
1x Water Flow connector |
|
1x Slow Mode Booting Jumper(JSLOW) |
|
1x Front Audio (JAUD) |
|
2x Thermal Sensor connectors(T_SEN) |
|
1x Tuning Controller connector(JDASH) |
|
3x Addressable V2 RGB LED connector (JARGB_V2) |
|
1x RGB LED connector(JRGB) |
|
1x TPM pin header(Support TPM 2.0) |
|
4x USB 2.0 |
|
4x USB 3.2 Gen1 Type A |
|
1x USB 3.2 Gen2 Type C |
|
1x USB 3.2 Gen 2x2 Type-C |
|
1x USB 3.2 Gen 2x2 Type C |
|
V-check point |
LED FEATURE |
1x EZ LED Control switch |
|
4x EZ Debug LED |
|
1x 2-Digit Debug Code LED |
