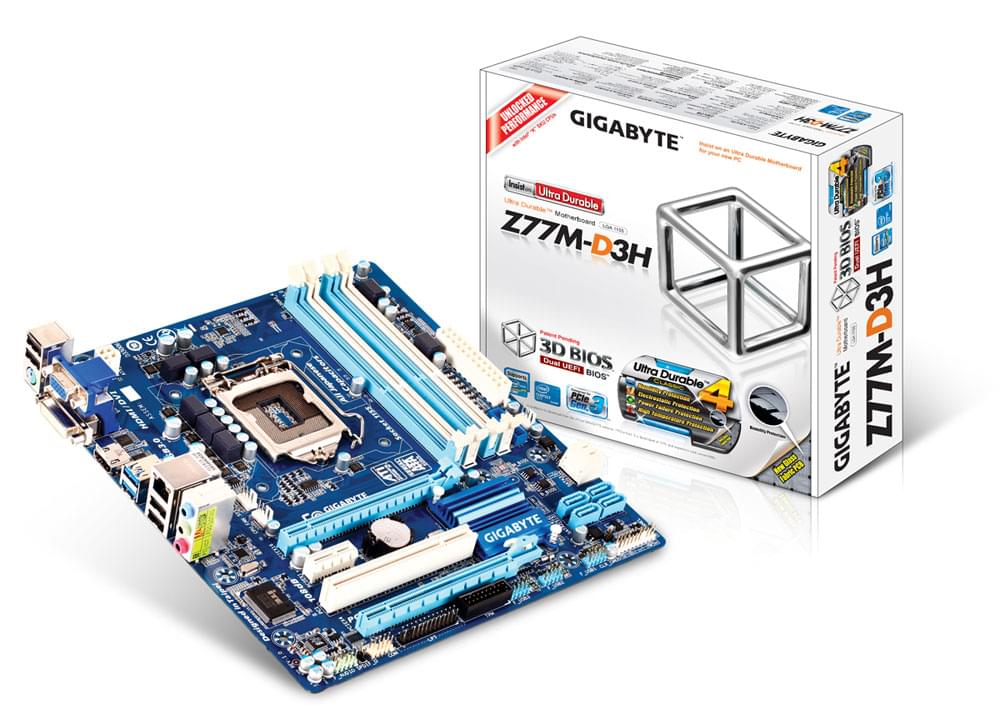

    Gigabyte Z77M-D3H

    Carte mère Gigabyte Z77M-D3H - Z77/LGA1155/DDR3/PCI-E/mATX

    Caractéristiques


    Processeur
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
    Chipset
    1. Intel® Z77 Express Chipset
    Mémoire
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 1600/1333/1066 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
    Carte Graphique IntégréeIntegrated Graphics Processor:
    1. 1 x D-Sub port
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
    Audio
    1. VIA VT2021 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
    Réseau
    1. Atheros GbE LAN chip (10/100/1000 Mbit)
    Port d'expansion
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 1 x PCI Express x1 slot
      (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
    4. 1 x PCI slot
    Technologie Multi-cartes graphiques
    1. Support for AMD CrossFireX™ technology
      * The PCIEX16 slot operates at up to x4 mode when AMD CrossFireX™ is enabled.
    Interface de StockageChipset:
    1. 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
    2. 4 x SATA 3Gb/s connectors (SATA2 2/3/4/5) supporting up to 4 SATA 3Gb/s devices
    3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
    USBChipset:
    1. Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
    2. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
      * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
    Connecteurs d'entrées/sorties internes
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x SATA 6Gb/s connectors
    4. 4 x SATA 3Gb/s connectors
    5. 1 x CPU fan header
    6. 2 x system fan headers
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x USB 3.0/2.0 header
    11. 3 x USB 2.0/1.1 headers
    12. 1 x serial port header
    13. 1 x parallel port
    14. 1 x Trusted Platform Module (TPM) header
    15. 1 x Clear CMOS jumper
    Connecteur du Panneau Arrière
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 2 x USB 3.0/2.0 ports
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In/Line Out/Microphone)
    Contrôleur d'Entrée/Sortie
    1. iTE I/O Controller Chip
    Monitorage Matériel
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
    Fonctionnalités Exclusives
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Install
    4. Support for Xpress Recovery2
    5. Support for eXtreme Hard Drive (X.H.D)
    6. Support for Auto Green
    7. Support for ON/OFF Charge
    8. Support for Q-Share
    9. Support for LAN Optimizer (Intelligent optimization network management tool)
    Logiciels Fournis
    1. Norton Internet Security (OEM version)
    2. Intel® Rapid Start Technology
    3. Intel® Smart Connect Technology
    4. Intel® Smart Response Technology
    Système d'Exploitation
    1. Support for Microsoft® Windows 7/XP
    Dimensions
    1. Micro ATX Form Factor; 24.4cm x 22.0cm

    Code EAN

    4719331805166

    Référence produit

    04290

    Référence constructeur

    Z77M-D3H
