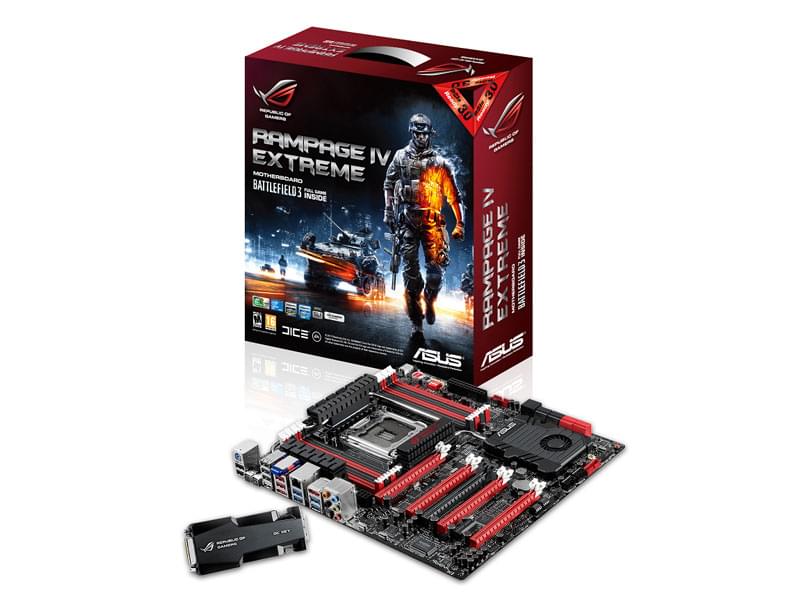

Carte mère ASUS RAMPAGE IV EXTREME/BF3 - Chipset Intel X79 - Socket LGA2011 + Jeu PC - BATTLEFIELD 3

• Intel® Socket 2011 pour les processeurs de 2nd Generation Intel® Core™ i7 Extreme Edition
• Support Intel® Turbo Boost
• Intel® X79 Express
• 8 x DIMM, max. 64GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz, non-ECC, un-buffered memory
• 4 x PCIe3.0 x16 (rouge), support x16; x16/x16; x16/x8/x16 et x16/x8/x8/x8 - 1 x PCIe3.0 x16 (gris), support x8 - 1 x PCIe2.0 x1
• NVIDIA 4-Way SLI™ / ATI CrossFireX™
• - 2 x SATA 6.0 Gb/s ports (rouge); 4 x SATA 3.0Gb/s ports (noir) + 2 x SATA 6.0 Gb/s ports externes - 2 x SATA 6.0 Gb/s ports (rouge)
• LAN : Gigabit Intel® Ethernet LAN
• Realtek® ALC898 7.1-Channel High Definition Audio CODEC + Jack-detection, Multi-streaming - Blu-ray audio layer - Optical S/PDIF sortie à l'arrière
• Bluetooth v2.1+EDR
• 8 x USB 3.0/2.0 (4 à l'arrière; 4 sur la carte mère) + 12 x USB 2.0/1.1 (4 ports dnas la carte; 7 ports à l'arrière, 1 réservé au FROG)
• Extended ATX : 12”x 10.7” (30.5cm x 27.2cm)


Processeurs
Intel® Socket 2011 pour les processeurs de 2nd Generation Intel® Core™ i7 Extreme Edition

Chipset
Intel X79 express

Mémoire
8 x DIMM, max. 64GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz, non-ECC, un-buffered memory

Audio
Realtek® ALC898 7.1-Channel High Definition Audio CODEC + Jack-detection, Multi-streaming - Blu-ray audio layer - Optical S/PDIF sortie à l'arrière

LAN
Gigabit Intel® Ethernet LAN

Interfaces
2 x SATA 6.0 Gb/s ports (rouge); 4 x SATA 3.0Gb/s ports (noir) + 2 x SATA 6.0 Gb/s ports externes - 2 x SATA 6.0 Gb/s ports (rouge)

Format
ATX : 12”x 10.7” (30.5cm x 27.2cm)

Connecteurs internes
2 x USB 3.0 connectors supports additional 4 USB 3.0 ports - 2 x USB 2.0 connectors support additional 4 USB 2.0 ports - 4 x SATA 6.0 Gb/s connectors (red) - 4 x SATA 3.0 Gb/s connectors (black) - 2 x Subzero Sense connectors - 1 x OC Key header - 1 x OT header (ROG Connect switch) - 8 x 4-pin Fan connectors: 2 x CPU / 3 x Chassis / 3 x Optional - 8 x ProbeIt Measurement points - 3 x Thermal sensor connectors - 1 x SPDIF_Out header - 1 x 24-pin ATX Power connector - 1 x 8-pin ATX 12V Power connectors - 1 x 4-pin ATX 12V Power connectors - 1 x LN2 Mode header - 1 x Slow Mode switch - 1 x START (Power On) button - 1 x RESET button - 2 x EZ Plug connectors (4-pin in white for memory DIMMs; 6-pin in black for PCIe slots) - 1 x Go button - 1 x BIOS Switch button - 1 x Q Reset button - 1 x Audio front panel (AAFP) - 1 x System panel connector

Connecteurs arrières
1 x PS/2 keyboard/mouse combo port - 1 x Clr CMOS button - 1 x ROG Connect On/Off button - 2 x External SATA 6.0 Gb/s ports 1 x LAN (RJ45) port - "1 x Bluetooth v2.1+EDR module " - 4 x USB 3.0/2.0 ports (blue) - 8 x USB 2.0/1.1 ports (1 port also for ROG Connect) - 7.1-channel Audio+SPDIF I/O

Accessoires
1 x ROG Connect cable - 1 x 3-Way SLI bridge - 1 x 4-Way SLI bridge - 1 x SLI cable - 1 x CrossFire cable - 1 x 2-in-1 ASUS Q-Connector Kit - 2 x 2-in-1 SATA 3Gb/s signal - cables - 2 x 2-in-1 SATA 6Gb/s signal cables - 1 x I/O shield - 1 x 12-in-1 ROG Cable label - 1 x ProbeIt cable set - 1 x OC Key - 1 x OC Key cable - 1 x X-Socket pad
